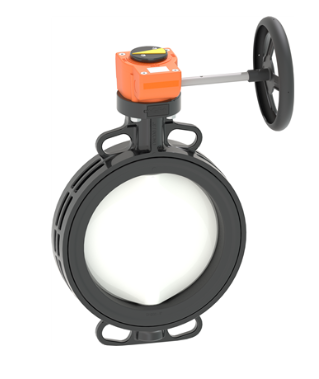

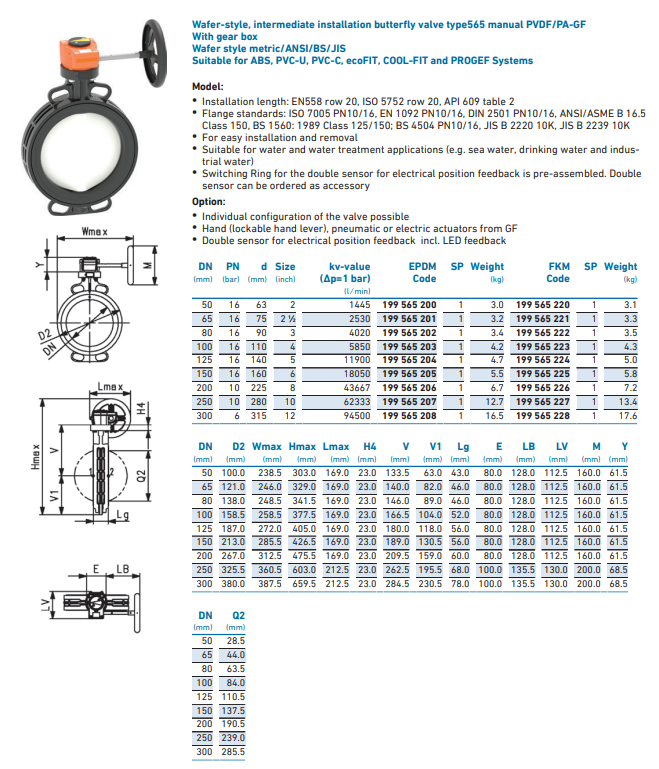

Wafer-style, intermediate installation butterfly valve type565 manual PVDF/PA-GF
With gear box Wafer style metric/ANSI/BS/JIS Suitable for ABS, PVC-U, PVC-C, ecoFIT, COOL-FIT and PROGEF Systems
Model:
• Installation length: EN558 row 20, ISO 5752 row 20, API 609 table 2
• Flange standards: ISO 7005 PN10/16, EN 1092 PN10/16, DIN 2501 PN10/16, ANSI/ASME B 16.5
Class 150, BS 1560: 1989 Class 125/150; BS 4504 PN10/16, JIS B 2220 10K, JIS B 2239 10K
• For easy installation and removal
• Suitable for water and water treatment applications (e.g. sea water, drinking water and industrial water)
• Switching Ring for the double sensor for electrical position feedback is pre-assembled. Double
sensor can be ordered as accessory
Option:
• Individual configuration of the valve possible
• Hand (lockable hand lever), pneumatic or electric actuators from GF
• Double sensor for electrical position feedback incl. LED feedback
