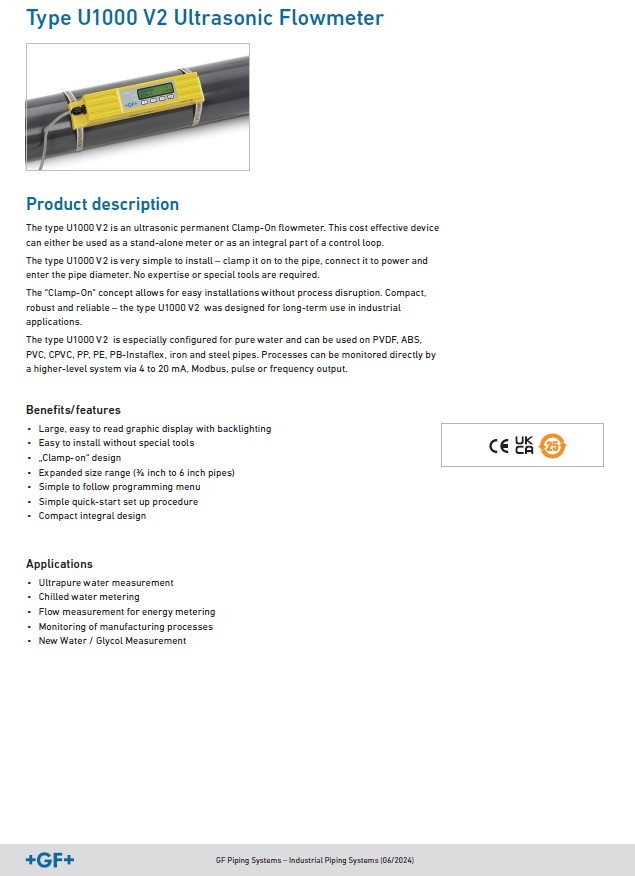

Type U1000 V2 Ultrasonic Flowmeter
The type U1000 V2 is an ultrasonic permanent Clamp-On flowmeter. This cost effective device
can either be used as a stand-alone meter or as an integral part of a control loop.

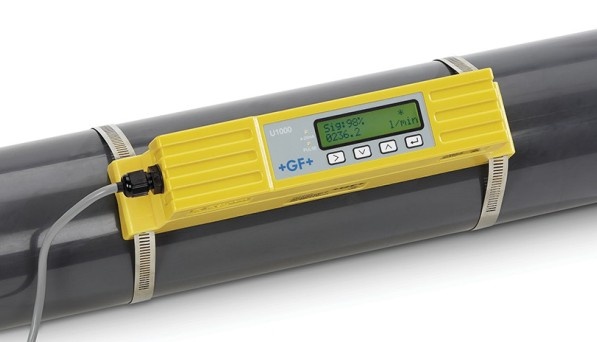

The type U1000 V2 is very simple to install – clamp it on to the pipe, connect it to power and
enter the pipe diameter. No expertise or special tools are required.
The "Clamp-On" concept allows for easy installations without process disruption. Compact,
robust and reliable – the type U1000 V2 was designed for long-term use in industrial
applications.
The type U1000 V2 is especially configured for pure water and can be used on PVDF, ABS,
PVC, CPVC, PP, PE, PB-Instaflex, iron and steel pipes. Processes can be monitored directly by
a higher-level system via 4 to 20 mA, Modbus, pulse or frequency output.
Applications
• Ultrapure water measurement
• Chilled water metering
• Flow measurement for energy metering
• Monitoring of manufacturing processes
• New Water / Glycol Measurement
