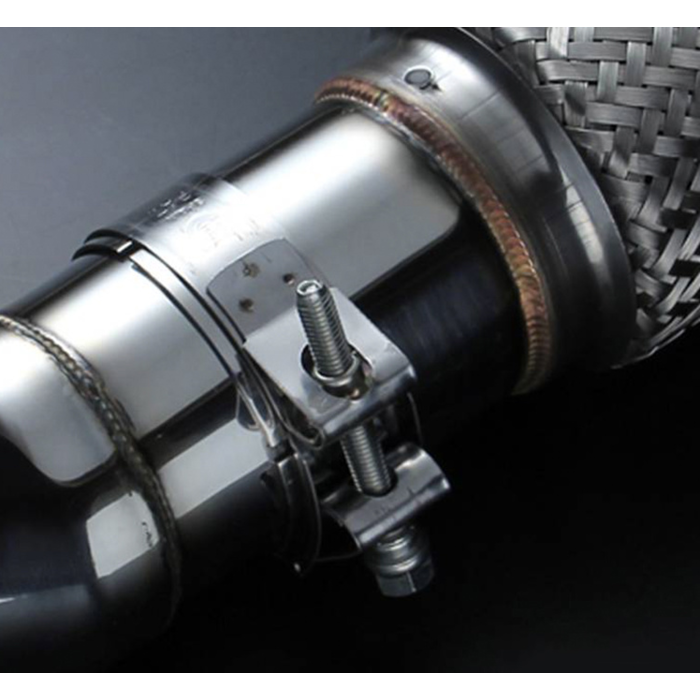

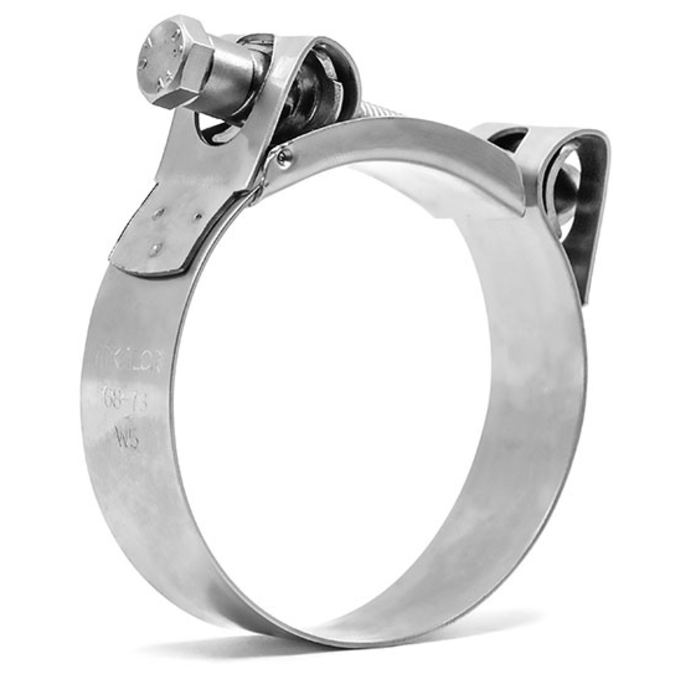

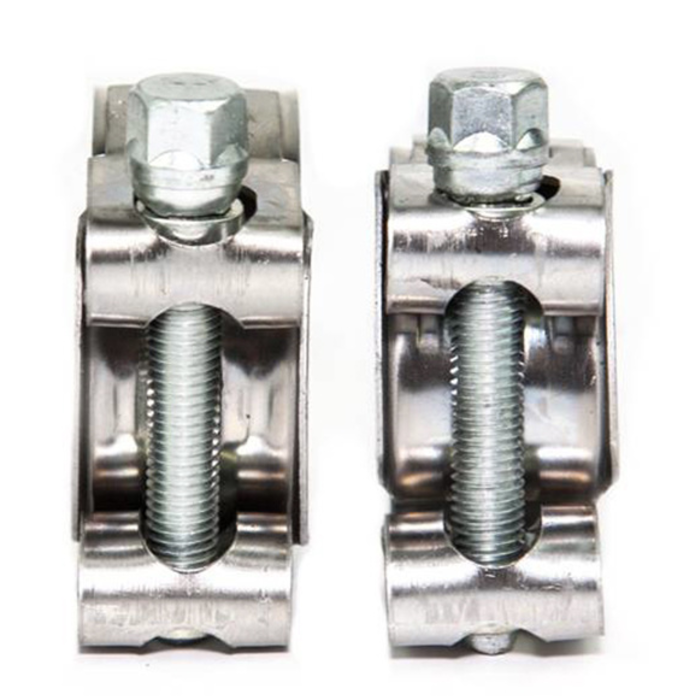

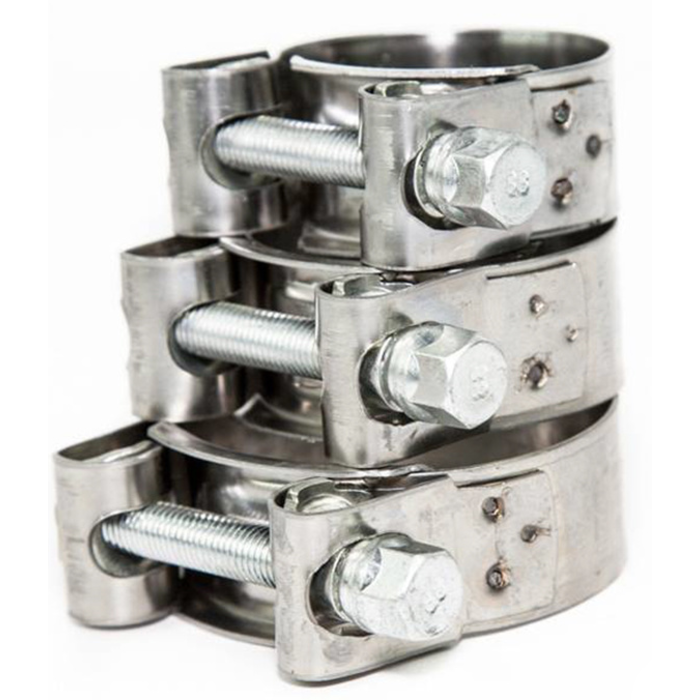

The Supra range is the natural evolution of the Super W1 Clamp. Due to its revolutionary swiveling bridge, Supra can be mounted in the most awkward applications without having to remove the hose. It can be opened up and fastened again when in place without dislodging any other parts of the clamp, making assembly much easier. Thanks to the beveled edges, the hose is protected from damage. The Supra clamp complies fully with the RoHs directive EU 20032/95/EC dated 1st July 2006. The high-strength bolt, designed and manufactured by Mikalor specifically for this clamp, together with the captive nut and spacer system allow you to clamp the most demanding of hose assemblies. This is the clamp of choice for professionals in the industrial hose, automotive and agricultural machinery sectors as well as in all industrial applications where an outstanding and above all reliable heavy-duty clamp is required.
17-19 mm to 27-29 mm: Bolt = M6, Band width = 18 mm
29-31 mm to 63-68 mm: Bolt = M7, Band width = 20 mm
68-73 mm to 121-130 mm: Bolt = M8, Band width = 25 mm
130-140 mm to 395-408 mm: Bolt = M10, Band width = 28 mm
* Special dimensions are available on request. * The maximum application pressure can vary depending on the type of hose used and the geometry of the coupling. Patented Worldwide.
