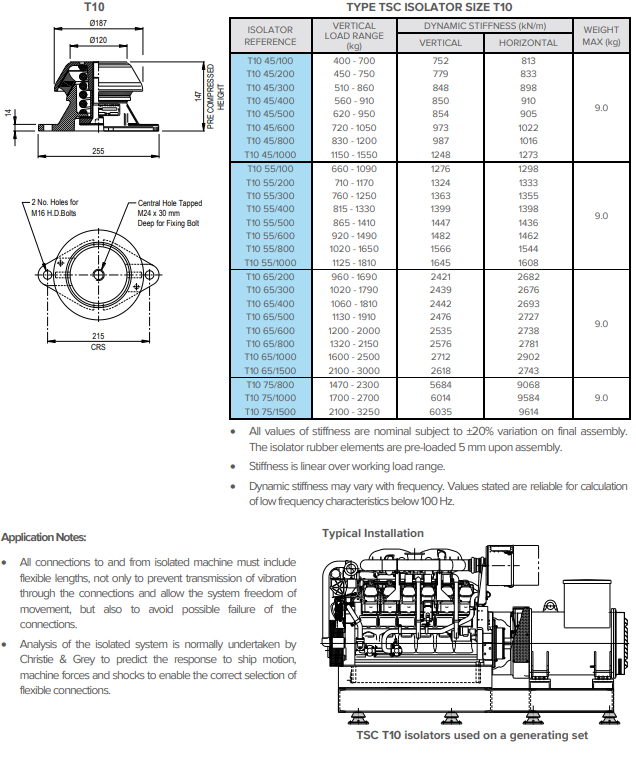

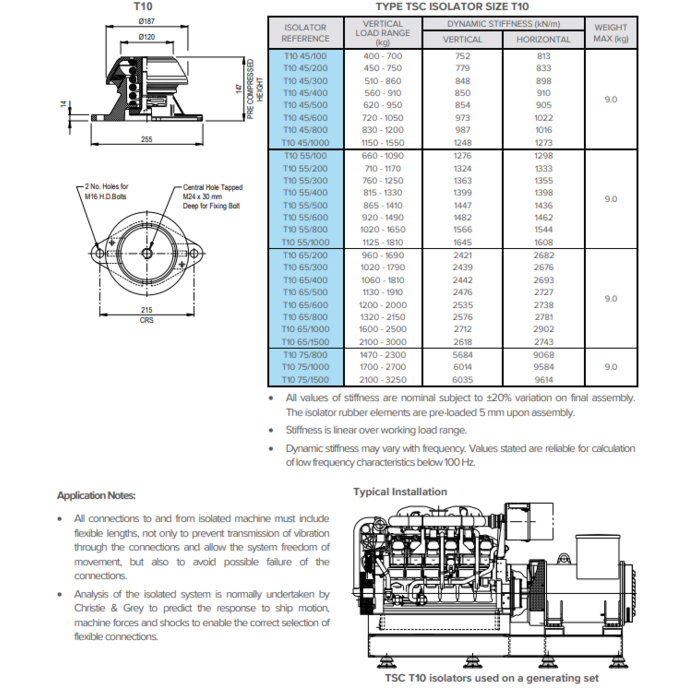

Unit isolators are highly effective in reducing the transmission of vibration, structure-borne noise and shock from a wide range of rotating and reciprocating machinery and in protecting sensitive apparatus from external disturbances. They are particularly suitable for marine and mobile applications as internal snubbers are incorporated to control movement of the isolated machine. Type approval by Det Norske Veritas and general type approval has been given by Lloyd’s Register of Shipping.
Helical steel spring to BS1726 Class B.
Inclined rubber springs are first grade natural rubber to metal bonded elements.
SG iron castings to BS EN 1563 EN-GJS-400/15.
Steel spring in most variants is isolated from the top casting by resilient seating pad reducing transmission of high frequency vibration and effectively damping spring coil surge resonance.
Springs are pre-compressed on assembly
resulting in high equivalent static deflection and load capacity with minimum change between loaded and unloaded height
Marine Propulsion Engines.
Marine Generator Sets
