Description
Stainless steel tapping tee type T are used for permanent (hot) taps on several pipe types.
For water, gas and petrochemical fluids
Application:
The type T is in fact a reinforced double band clamp with a flanged outlet. The standard working range is 20mm.
Flange design
Flanges are drilled acc. to DIN 2576 and NEN 1092-1.
The flange thickness is 24 mm for flanges up to DN 200 and 26 mm for flanges up to up to DN 300. Standard flanges are flat faced PN 10, but raised faced, ASA and PN 16 flanges are available upon request.

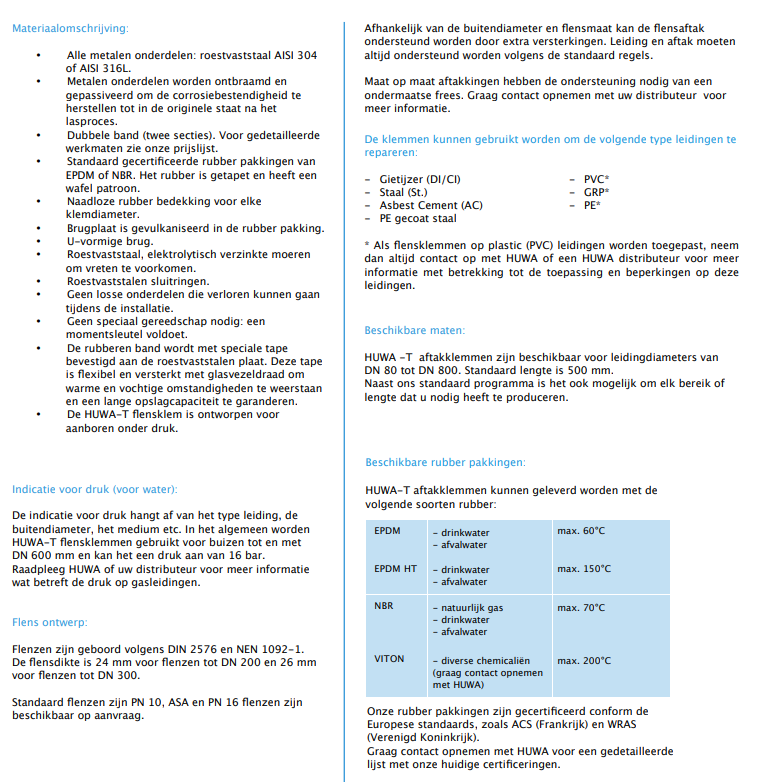

Material specification
- All metal parts: stainless steel AISI 304 or AISI 316L.
- Metal parts have been deburred and are passivated to restore the corrosion resistance to its original state after the welding process.
