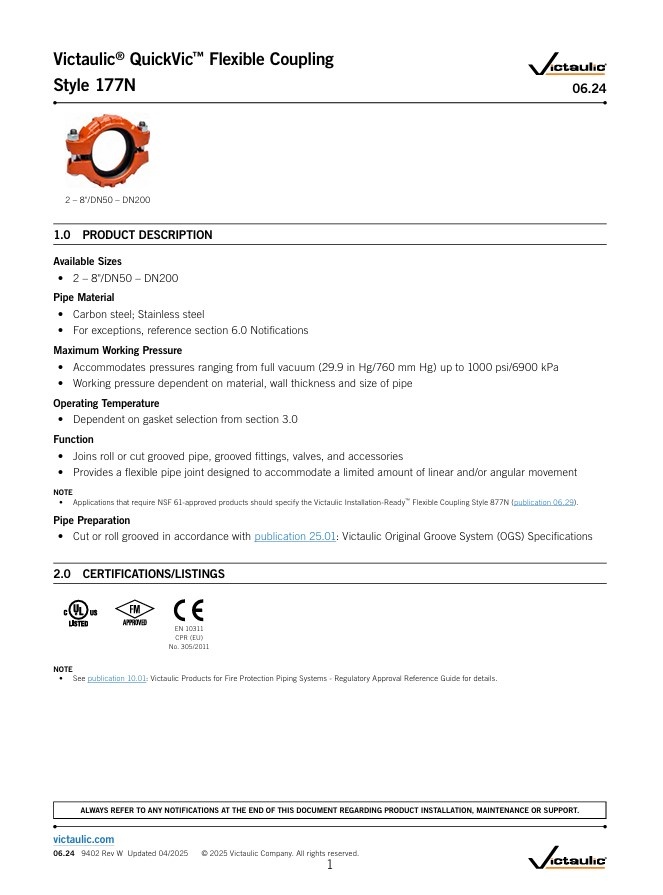

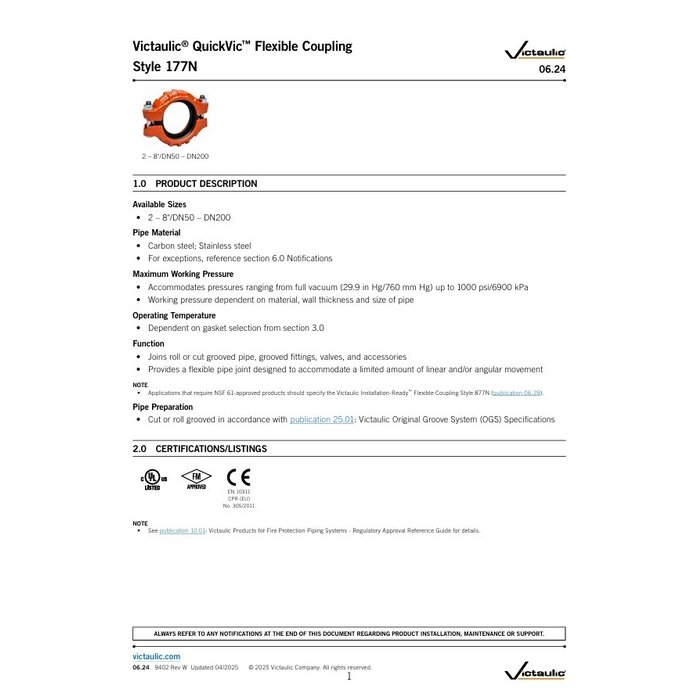

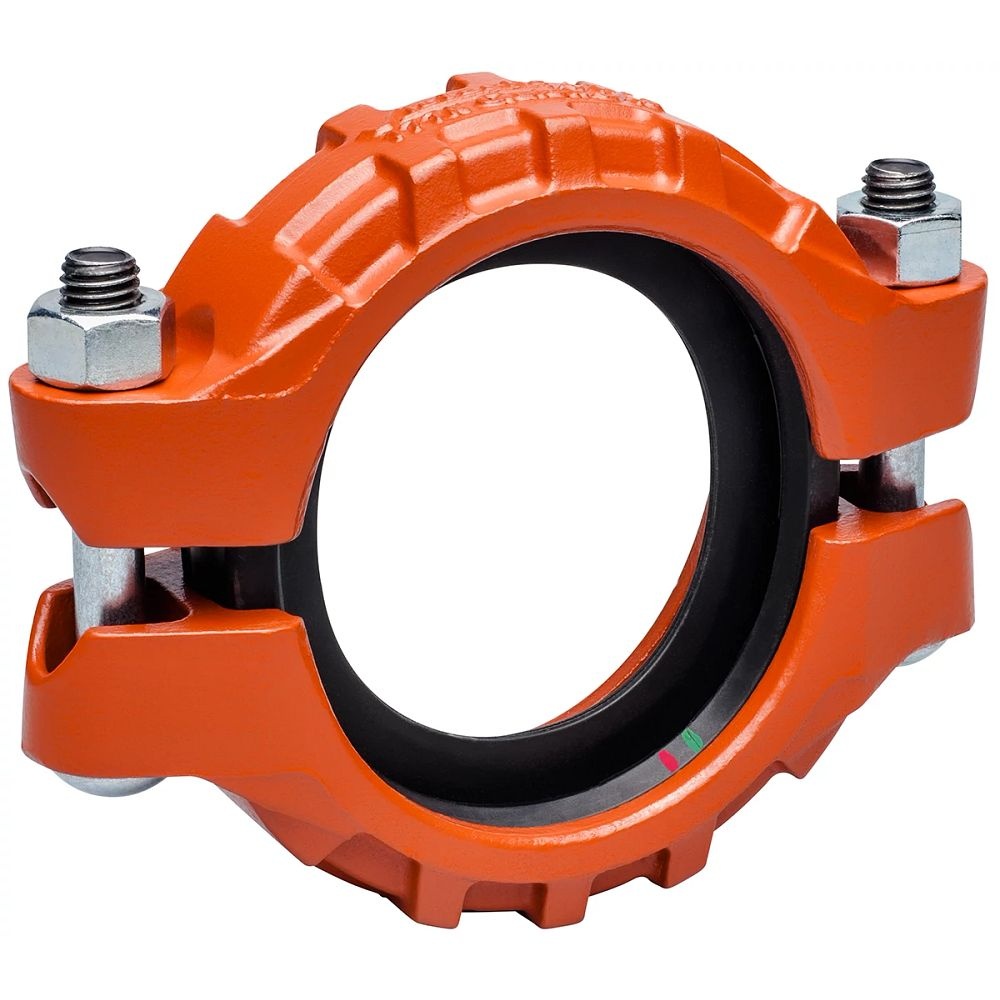

Victaulic QuickVic Flexible Coupling Style 177N

• 2 – 8"/DN50 – DN200

Pipe Material

• Carbon steel; Stainless steel

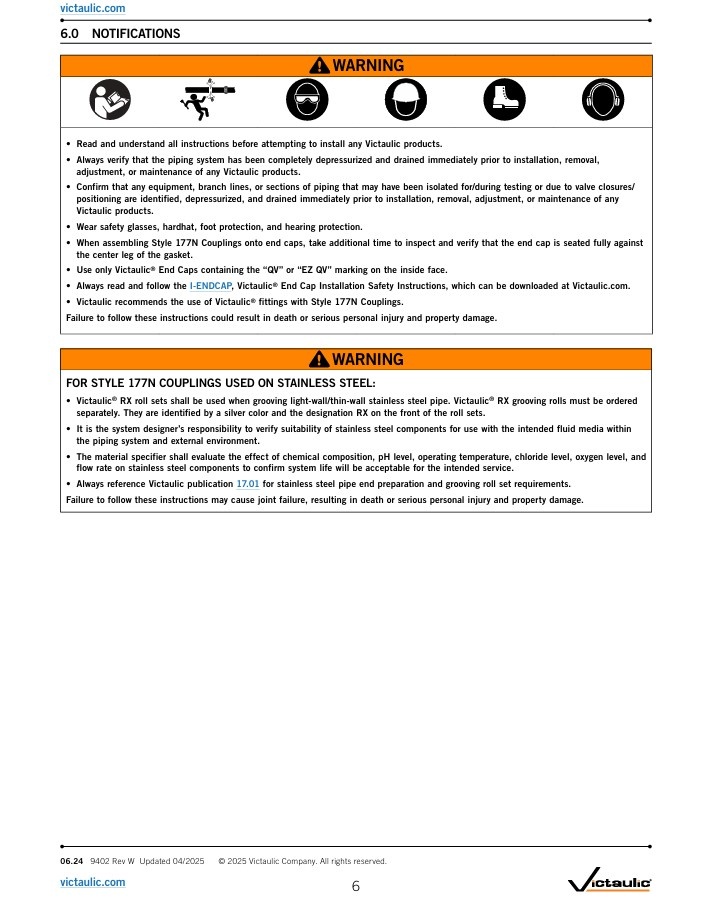

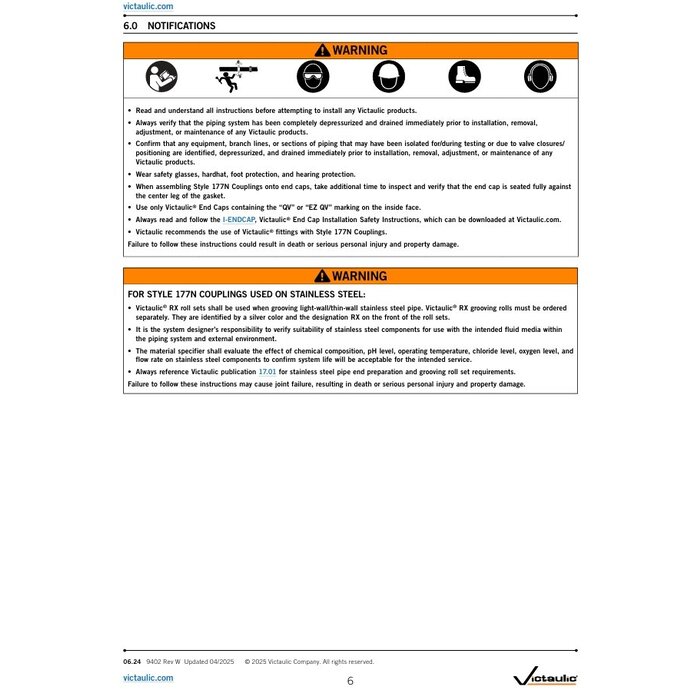

• For exceptions, reference section 6.0 Notifications

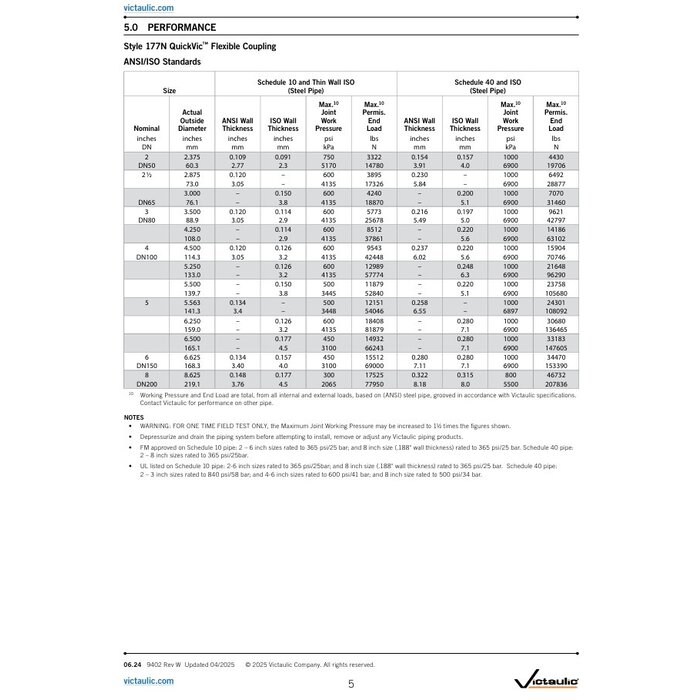

Maximum Working Pressure

• Accommodates pressures ranging from full vacuum (29.9 in Hg/760 mm Hg) up to 1000 psi/6900 kPa

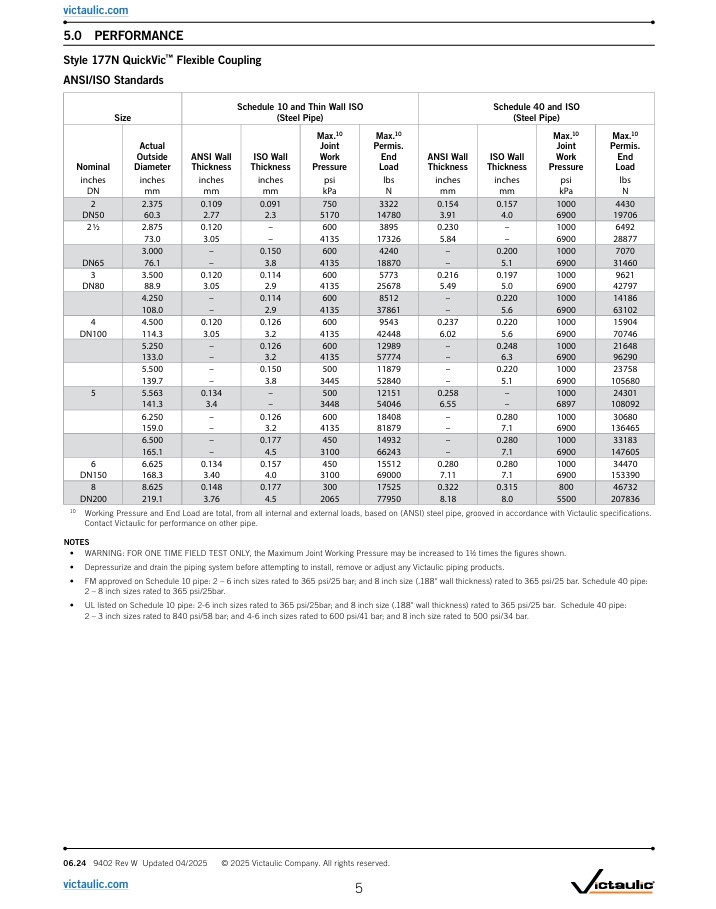

• Working pressure dependent on material, wall thickness and size of pipe
Operating Temperature

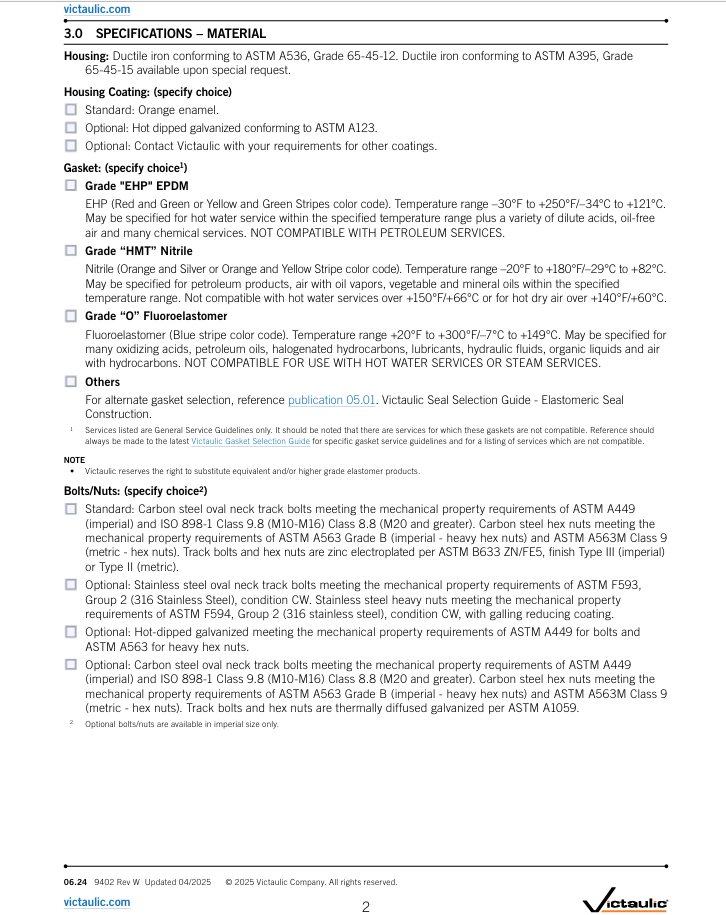

• Dependent on gasket selection from section 3.0

Function

• Joins roll or cut grooved pipe, grooved fittings, valves, and accessories

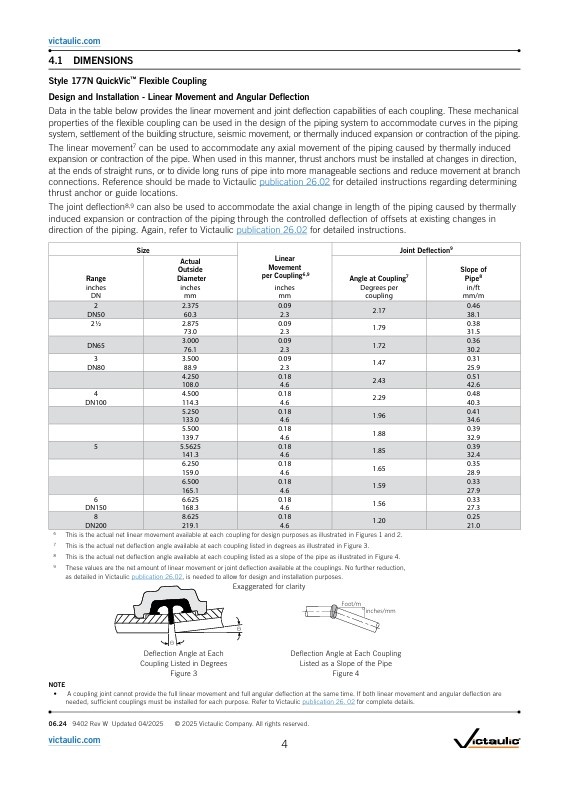

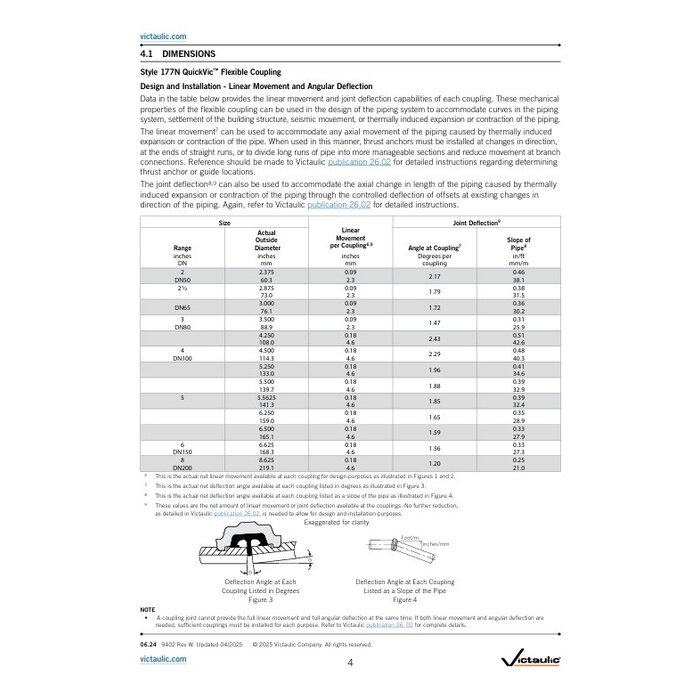

• Provides a flexible pipe joint designed to accommodate a limited amount of linear and/or angular movement

NOTE

• Applications that require NSF 61-approved products should specify the Victaulic Installation-Ready™ Flexible Coupling Style 877N (publication 06.29).

Pipe Preparation

• Cut or roll grooved in accordance with publication 25.01: Victaulic Original Groove System (OGS) Specifications
